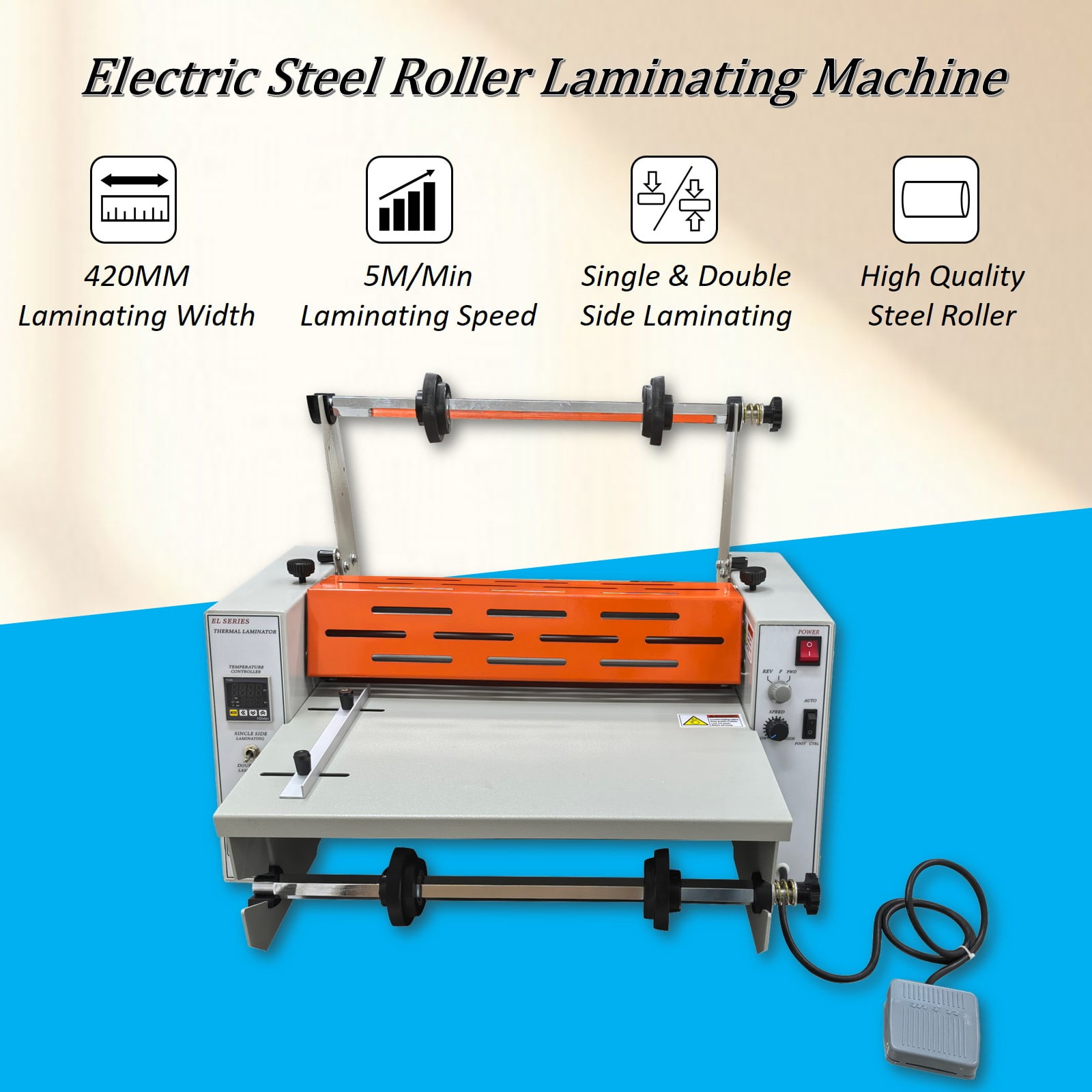

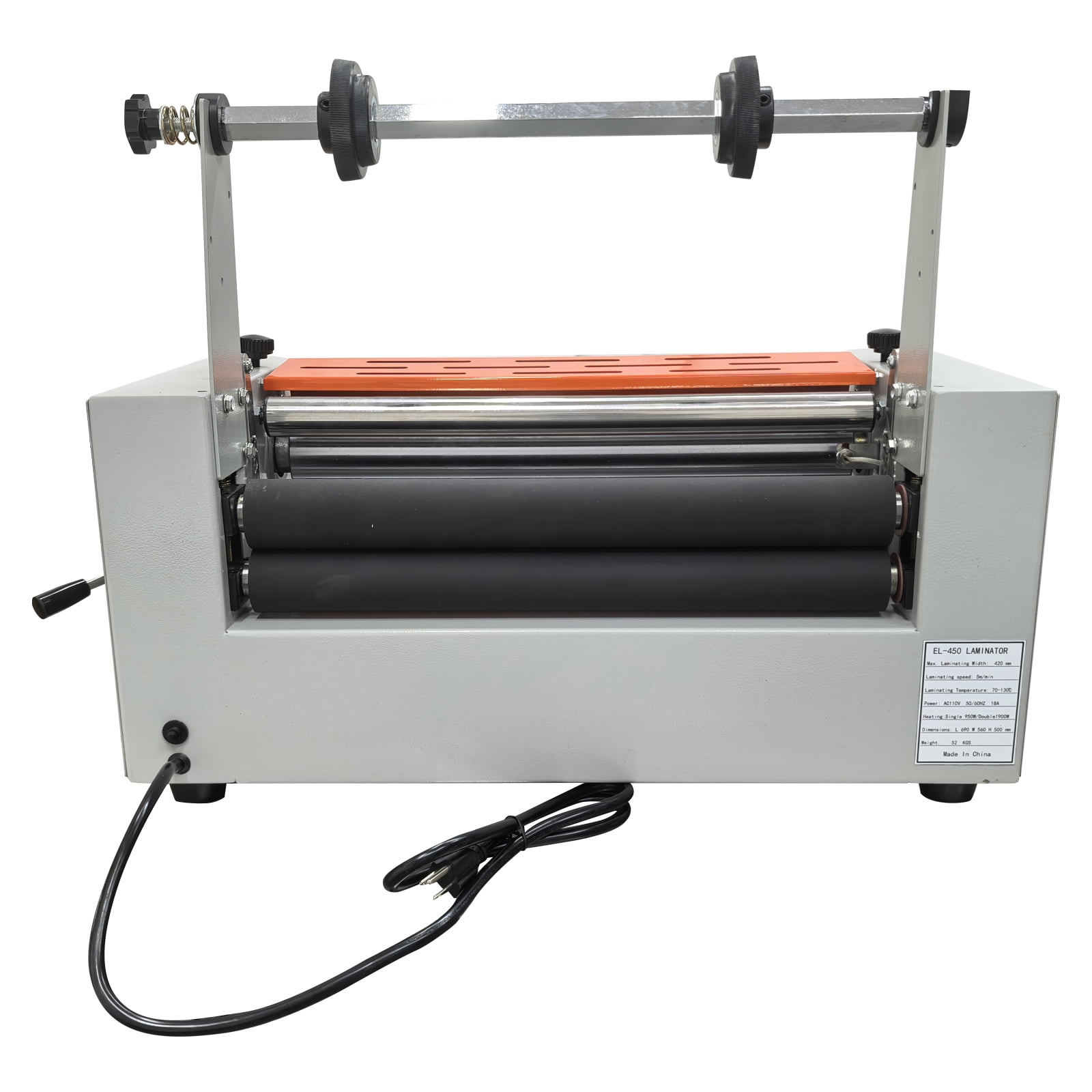

16'' Electric Steel Roller Thermal Laminator Single and Double Side Hot Roll Laminating Machine

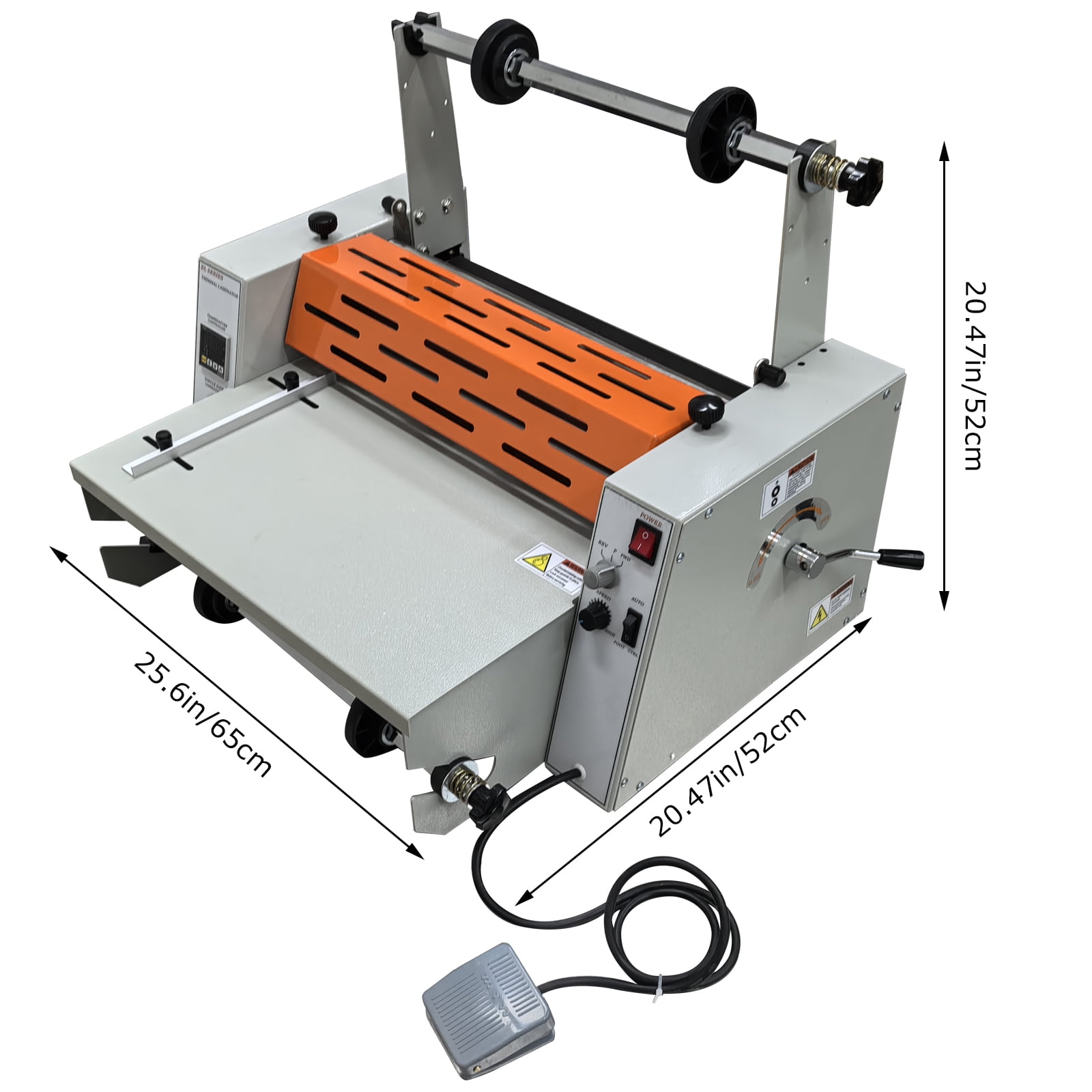

Product Overview: <br>The electric steel roller laminator is a professional laminating machine specifically designed for cold laminating and heat laminating operation in the industries of printing, packaging, manufacturing and so on. <br>The laminator adopts the upgraded steel roller structure, ensuring the high temperature resistance, high thermal conductivity, high hardness and high durability and effectively prolonging the service life. The steel roller laminator is an optimal choice for commercial and household application to meet different laminating requirements. <br> <br>Product Parameters: <br>Maximum laminating width: 420mm (16.54'') <br>Laminating speed: 5m/min <br>Laminating temperature: 70-130˚C <br>Power supply: AC110V 50/60Hz 18A <br>Heating power: Single side 950W / Double side 1900W <br>Product size: 65x52x52cm (25.6''x20.47''x20.47'') <br>Net weight: 45.5kg (100.31LB) <br> <br>Attention: <br>1. Always handle the laminator with care. Keep hands, long hair, loose clothing and other articles away from the rollers to avoid entanglement. <br>2. The temperature of the heat rollers can reach 130℃. Avoid touching the heat rollers during operation or shortly after power has been removed from the laminator. <br>3. Ensure the local power supply is consistent to the power supply indicated on the nameplate of the product. <br>4. When the machine is not in use, the upper roller should always be lifted and in the ‘Open’ position to prevent the bottom roller from deformation and damage. <br> <br>Operation Method: <br>1. Turn on the Power switch, turn the Motion switch on the forward position and turn the control switch on the Foot control position. <br>2. Install the film rolls on the supporting rods and fix the film rolls at the center position, make sure the adhesive side of film to face away from rollers. The top and bottom film rolls should be aligned with each other if doing double-sided lamination, which prevents the exposed adhesive from making contact with the rollers. <br>3. Thread the film according to the Diagram. <br>4. Use a lead board to evenly push the film into the main roller nip. Pull the film by the pull rollers while pressing the Foot switch. <br>5. Set the laminating temperature to a certain degree (normally 70~100℃) according to the nature of film. You need to adjust it to get the good laminating result. Do not set the temperature over 115˚C to avoid damaging the laminator. After the work of laminating is finished, always lift up the upper steel roller to prevent the bottom roller from deformation and damage. <br>6. Clean any adhesive that may stick to the main rollers to prevent the adhesive from accumulation. <br> <br>Item Number (120107): <br>1 x Electric Steel Roller Thermal Laminator 16'' 110V

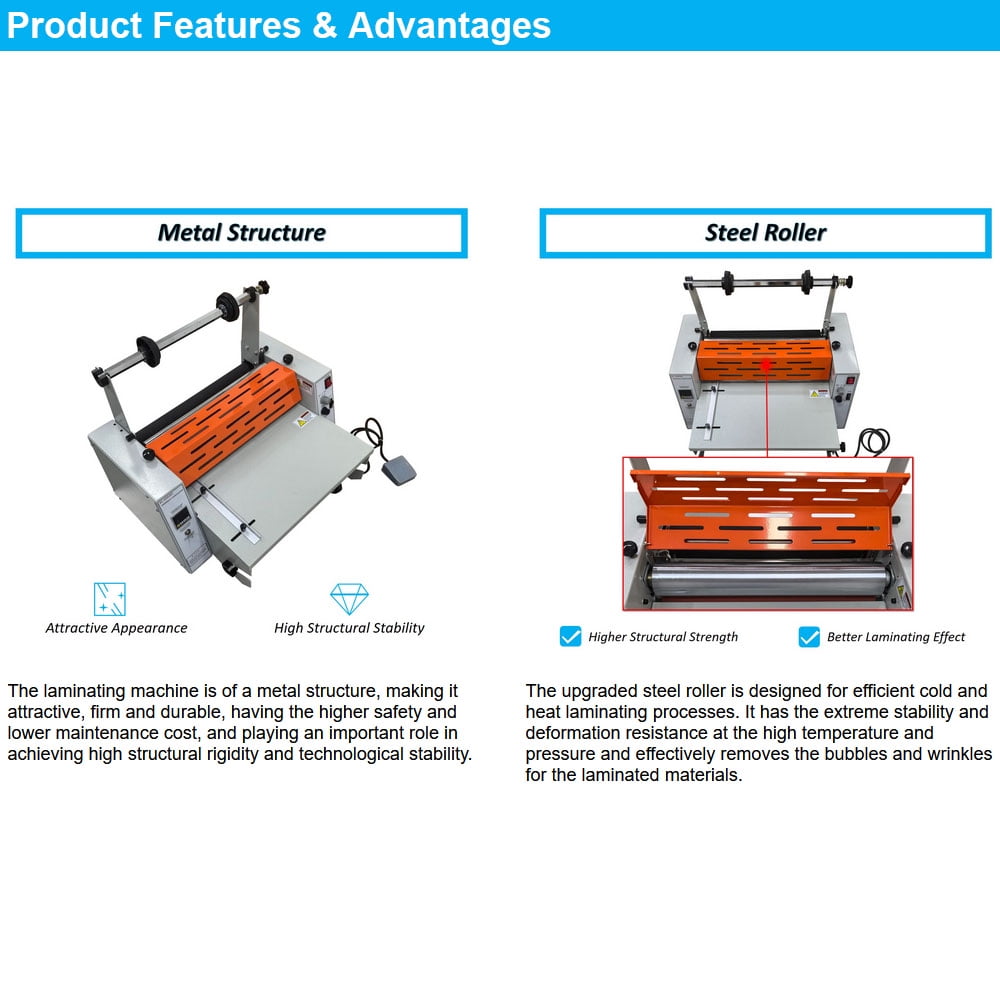

• ‌The laminating machine is of a metal structure, making it attractive, firm and durable, having the higher safety and lower maintenance cost, and playing an important role in achieving high structural rigidity and technological stability.

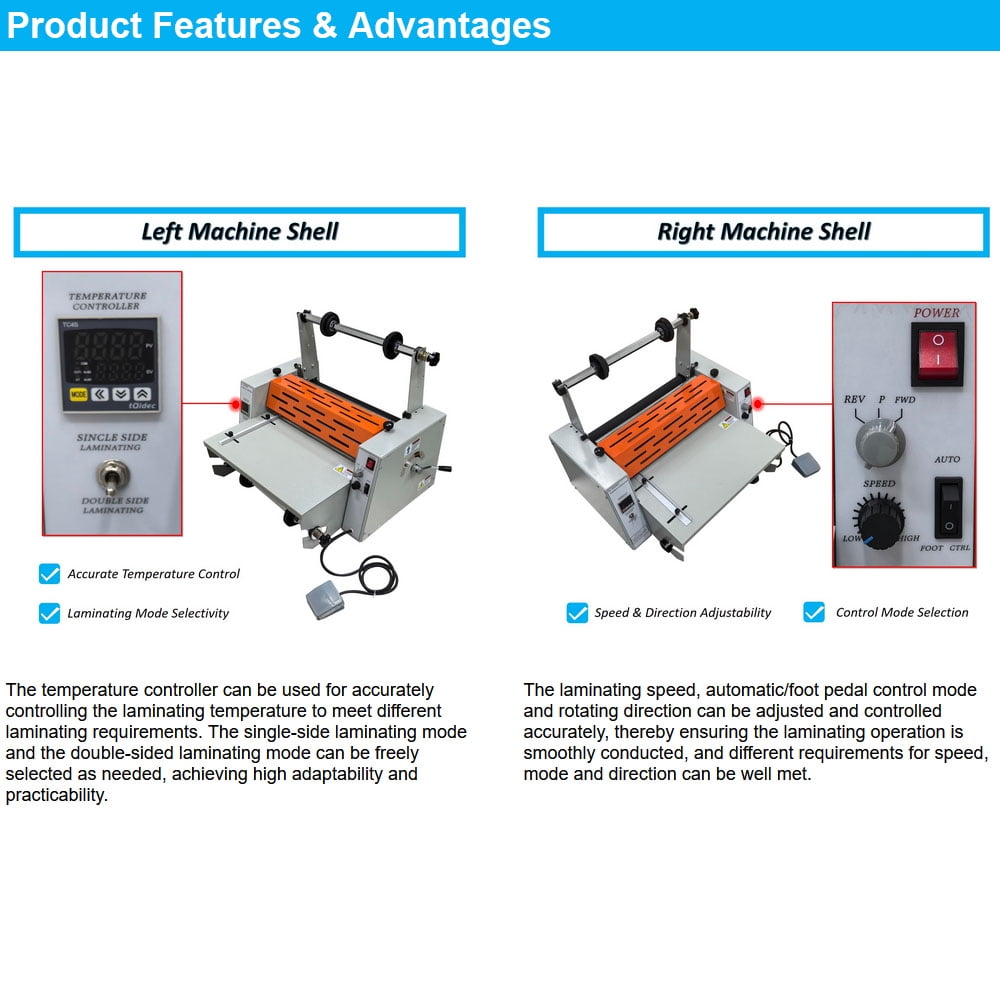

• The temperature controller can be used for accurately controlling the laminating temperature to meet different laminating requirements. The single-side laminating mode and the double-sided laminating mode can be freely selected as needed.
• The laminating speed, automatic/foot pedal control mode and rotating direction can be adjusted and controlled accurately, thereby ensuring the laminating operation is smoothly conducted.

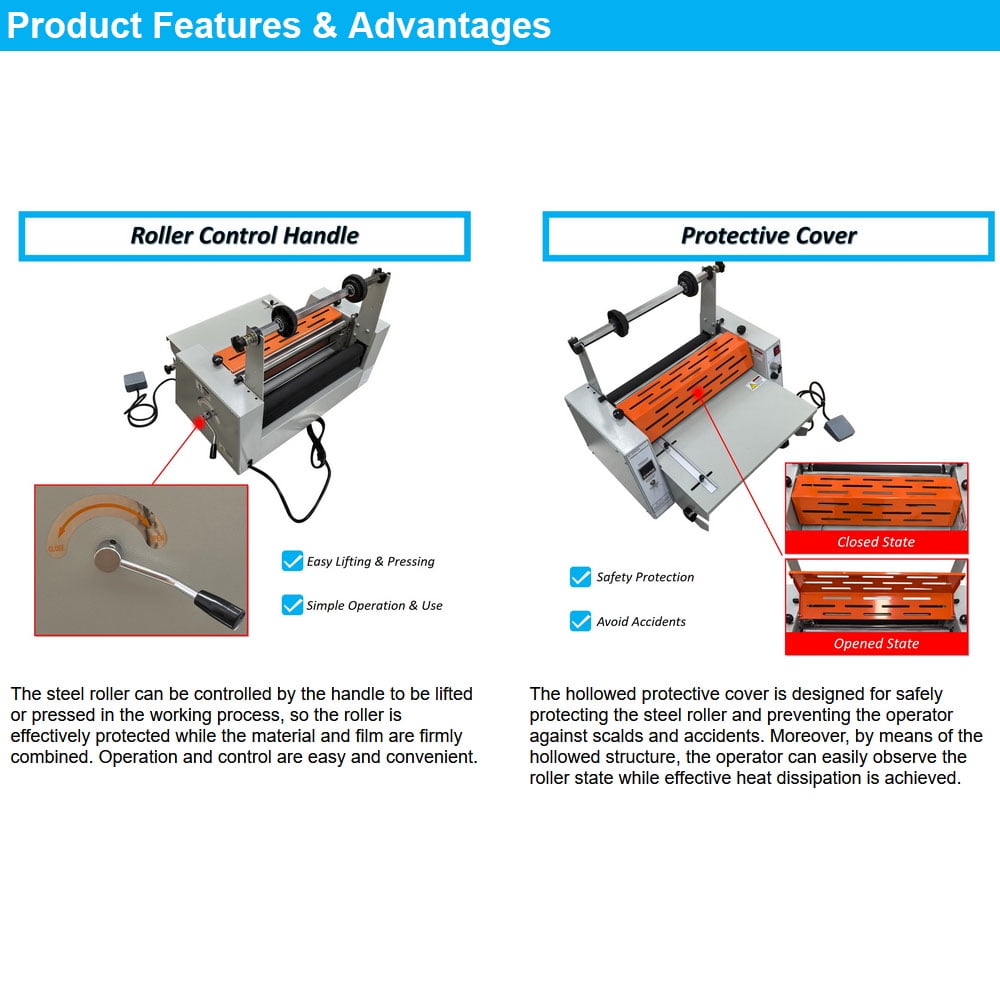

• The hollowed protective cover is designed for safely protecting the steel roller and preventing the operator against scalds and accidents. By means of the hollowed structure, the operator can easily observe the roller state while effective heat dissipation is achieved.

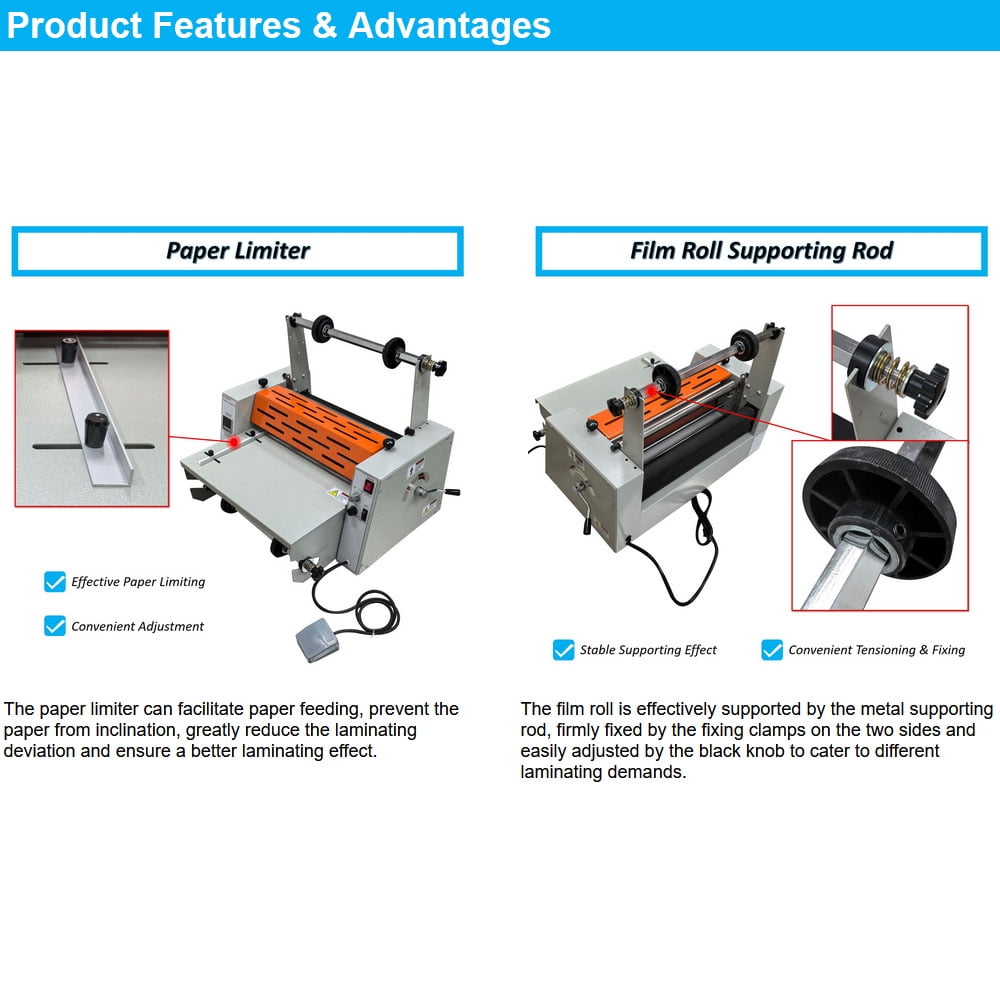

• The film roll is effectively supported by the metal supporting rod, firmly fixed by the fixing clamps on the two sides and easily adjusted by the black knob.
