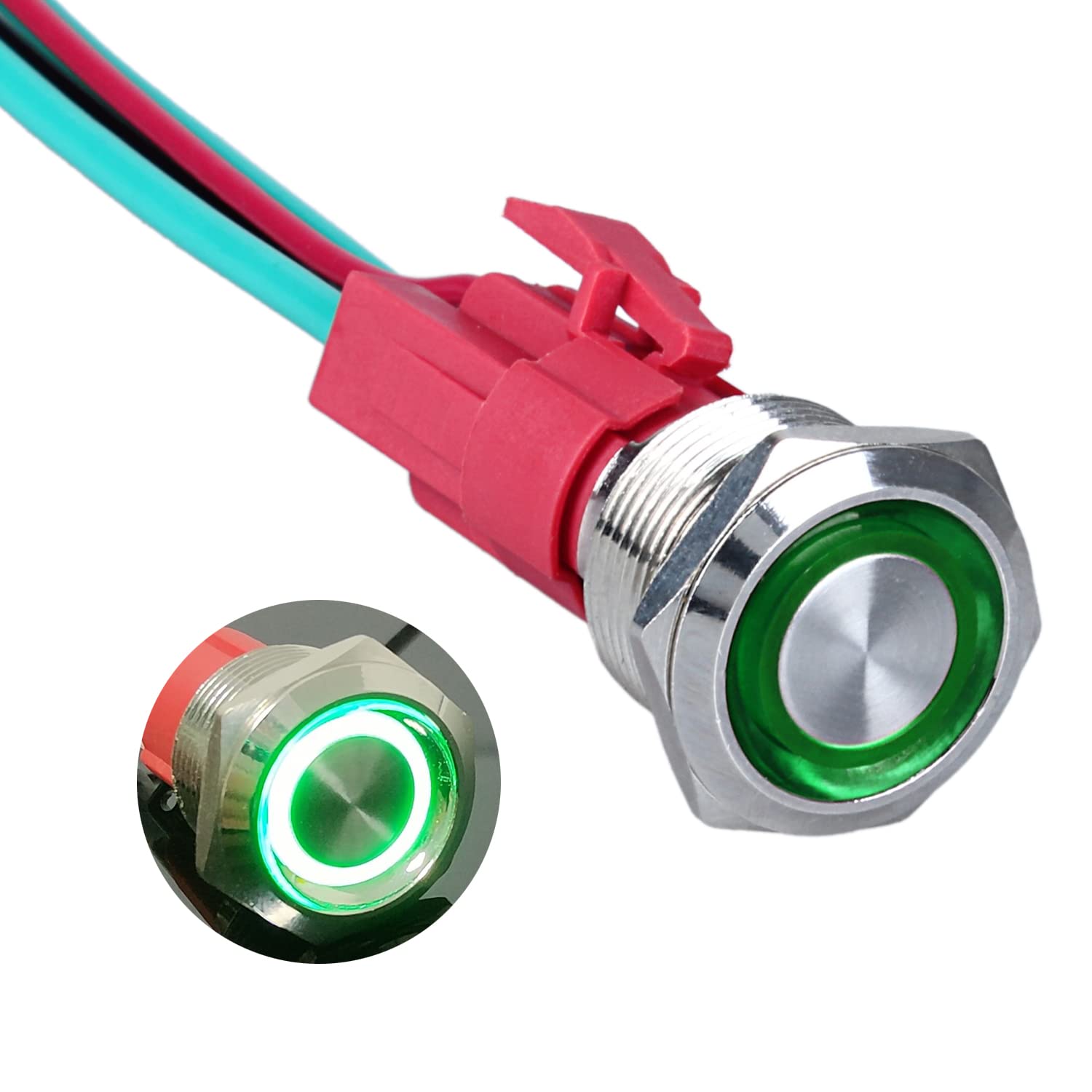

22mm Heavy Duty Momentary Metal Push Button Switch Waterproof Large Current 20Amp 12V-24V (ON)-Off 2NO 4 Pins with Pre-Wired Socket for 7/8" Mounting Hole (Halo Ring Green LED)
Product details
| Management number | 247491404 | Release Date | 2026/08/16 | List Price | $5.60 | Model Number | 247491404 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Momentary: Press & Hold-ON, Release-OFF; Electrical life: 100, 000 times, Mechanical life: 500,000 cycles
- High current: 20Amp 12-24VDC; LED Pattern: Halo Ring; LED life: 40, 000 Hours; Mounting Hole: 22mm(7/8")
- 2 wiring methods: LED light can be always on, or illuminates when the device is working; The pre-wired socket makes your operation much easier
- Protection Degree: IP67 Waterproof and dustproof; IK10 Anti-vandal rate. It can be used in wet or dusty environment; But Don’t immerse the button switch in water
- Wide Usage: Suitable for car, computer, instrument and meter industry, door bell, home appliance etc.
| ASIN | B0DP67W3RJ |
|---|---|
| Color | Green |
| Brand Name | DMWD |
| Unit Count | 1 Count |
| Part Number | AN20AHC-22HHD-TDN-ZFG |
| Contact Type | Normally Open |
| Manufacturer | DMWD |
| Material Type | Metal |
| Connector Type | Plug In |
| Current Rating | 20 A |
| Operation Mode | ON-OFF |
| Item Dimensions | 0.87 x 0.87 x 1.38 inches |
| Operating Voltage | 12 volts |
